HIGH SPEED DISPERSER
본문
고속분산기용 로터와 스테이터 입니다.
고속분산기용 로터와 스테이터 입니다.
상세설명
![고속분산기.jpg](http://www.hsng.co.kr/data/editor/2202/20220224091100_b75d512b129437379f7532bbfadfa885_pzh6.jpg)

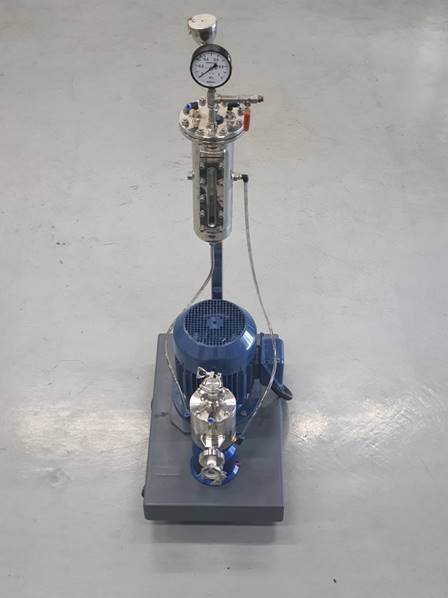

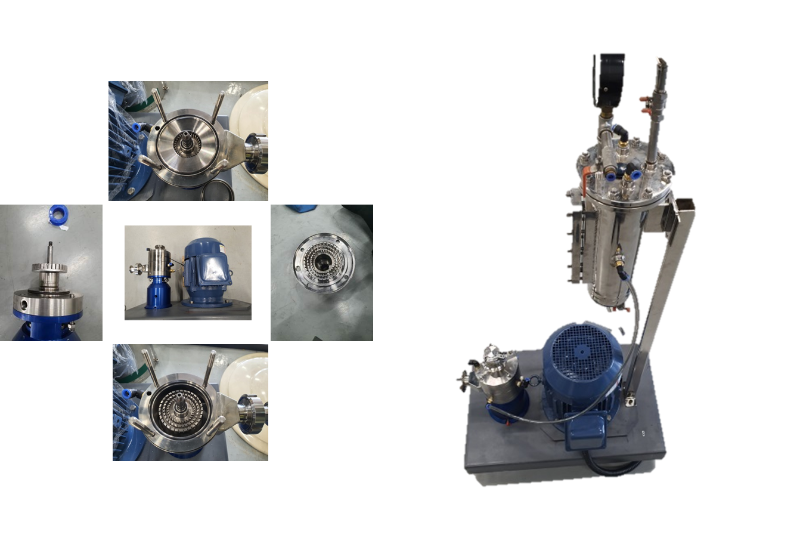

* HIGH SPEED DISPERSER
Electric specification | 전기사양 | 3상 380V |
Flow rate (max.) | 유량(최대) | 2500 l/h |
Viscosity (max.) | 점도(최대) | 5000 mPas |
Motor power | 모터파워 | 7.5 kW |
Motor power | 모터출력 | 7.5 kW |
Motor speed | 모터속도 | 3000 rpm |
Tip speed | 팁 속도 | 23 m/s |
Speed regulation possible | 속도 조절 가능 | yes |
Single mechanical seal | 기계적 밀봉 | yes |
Double mechanical seal | 이중 기계적 밀봉 | yes |
Lipseal | 립씰 | no |
Flame proof possible | 방염 가능 | yes |
Dispersing tool | 분산 도구 | 가능 |
Process pressue (max.) | 압력 (최대) | 16 bar |
Process temperature, max. | 공정 온도, 최대 | 160℃ |
Cleaning | yes SIP | |
Sterilisation | 청소살균 | yes SIP |
